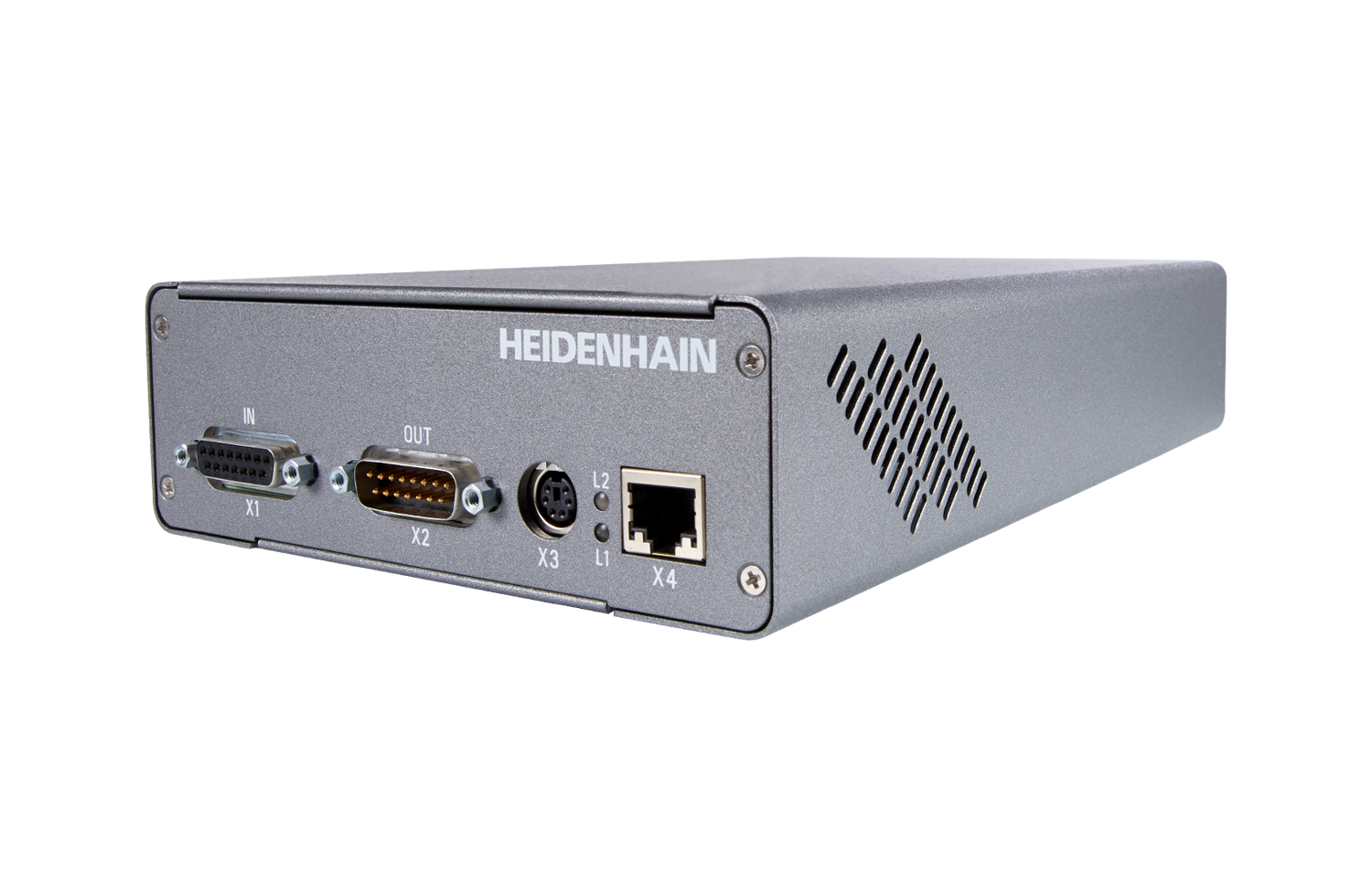

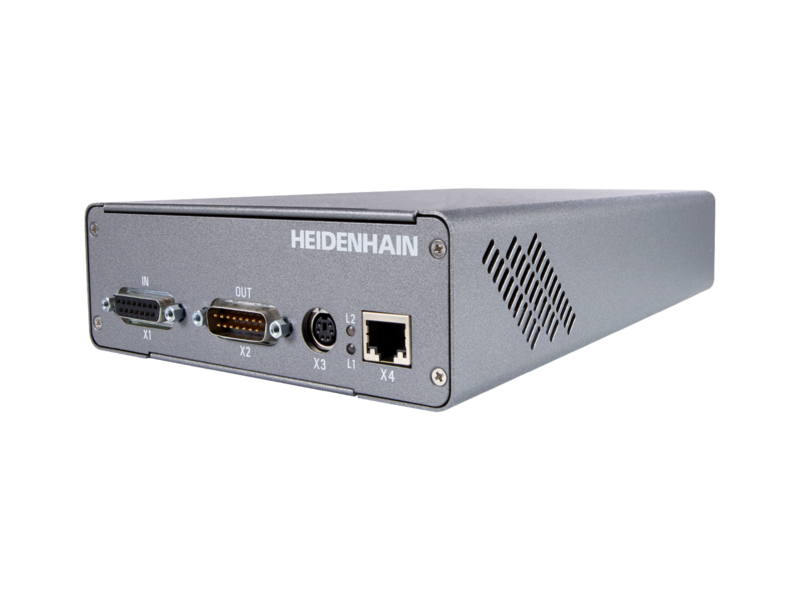

PWM 21 inspection unit for encoder diagnosis & adjustment HEIDENHAIN

Inspection unit for diagnostics and adjustment of absolute and incremental HEIDENHAIN encoders

Functional testing
Mounting wizard
Calibration capability
Adjustment via ATS software
Online diagnostics with the EnDat interface
USB port for connecting to a PC
Connectivity of EnDat 3 (E30-R2) encoders to the PWM 21 via the SA 1210 signal adapter

Diagnostics directly on the encoder

The encoder is connected directly to the inspection device. This enables a comprehensive functional analysis of the HEIDENHAIN encoder.

Diagnostics in the control loop

The PWM inspection device is linked into the closed control loop. This makes real-time diagnostics of the encoder possible in the machine or multi-machine system during operation. The functions depend on the interface.

Adjusting and testing software

The ATS adjusting and testing software with integrated local encoder database enables automatic encoder identification.

Software options

The ATS adjusting and testing software can be expanded by additional functions, such as a datum shift with information display, by purchasing a product key.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de

Find your nearest representative

Downloads

Product Information

User Documentation

Application-oriented design

Information about the product

Click the plus signs to learn more about the product.

Encoder inputs

EnDat 2.1 / EnDat 2.2 / DRIVE-CLiQ / SSI / 1 Vpp / 11 μApp / TTL / HTL / Fanuc Serial Interface / Mitsubishi high speed interface / Panasonic Serial Interface / Yaskawa Serial Interface

ATS software

Various functions, depending on the encoder or the encoder interface: display of the position value, read online diagnostics, read or write parameters, shift datums, configure write-protection, and perform other inspection functions
