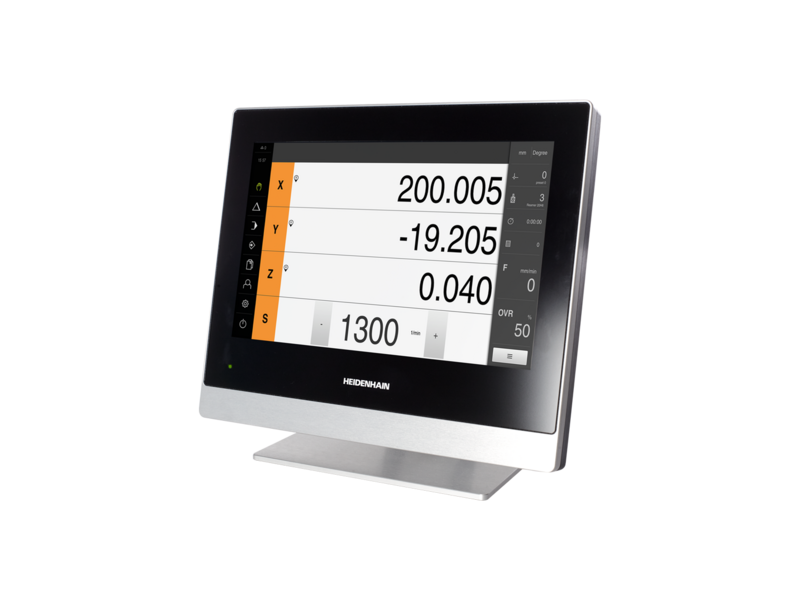

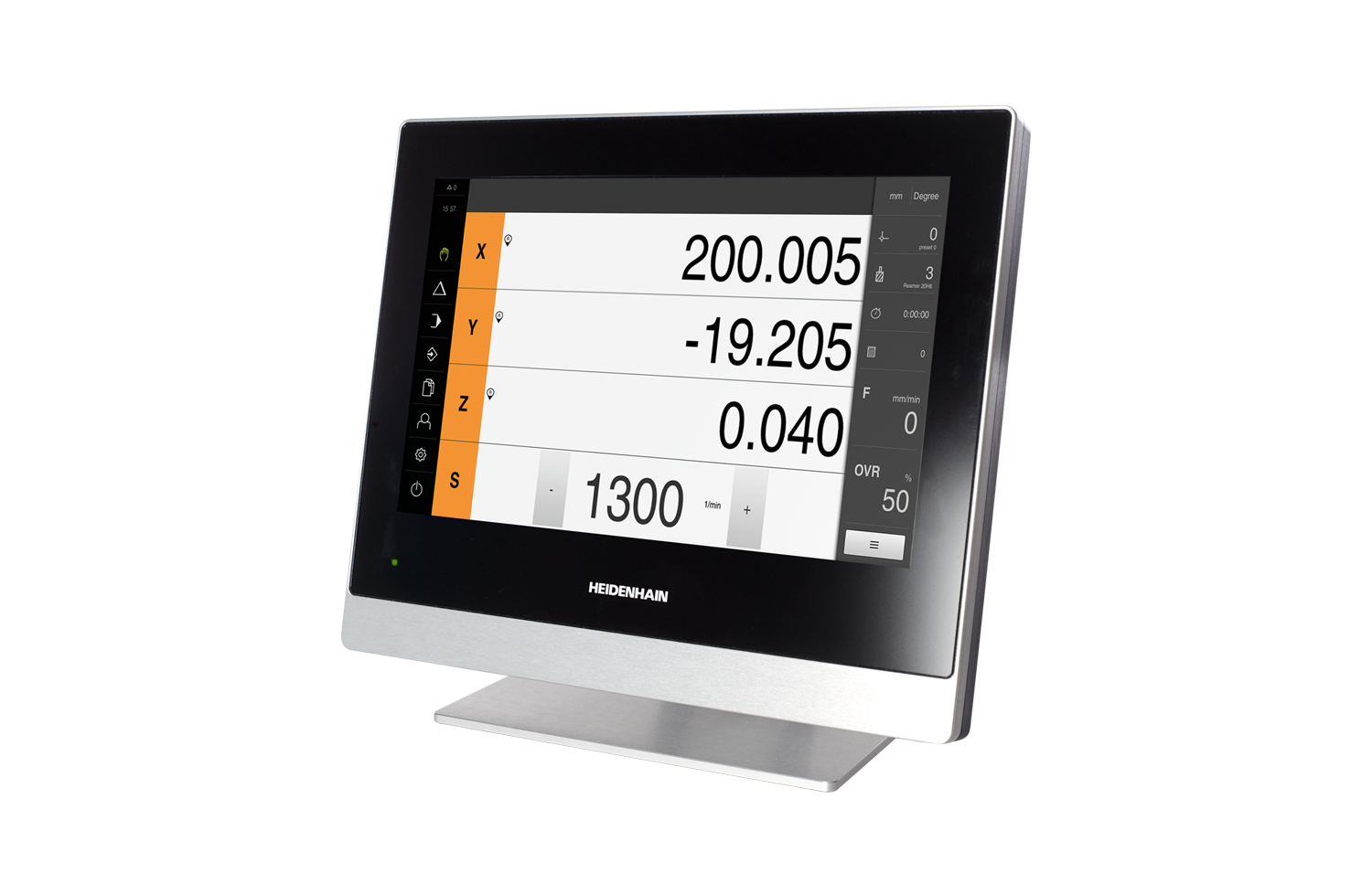

POSITIP 8000 series

Digital readouts for milling machines, drilling machines, and lathes with up to six axes

Up to three NC-controlled axes
Creation and execution of programs
Reference-point acquisition, and tool table with tool data
Positioning aids and block types in manual MDI mode
Configurable OEM bar
Switching functions for simple automated tasks

Intuitive user interface

The POSITIP 8000 series provides many useful functions for machining with manually-operated machine tools. Self-explanatory operating elements and language-sensitive information in plain language permit context-sensitive operation.

Programs for recurring tasks

Create, manage, and run programs for recurring workpieces directly on the POSITIP 8000: define a sequence of blocks with individual machining steps or patterns to form programs, and then run them. A software wizard guides you through the individual program steps.

Versatile mounting options

These digital readouts permit flexible and convenient mounting with the VESA MIS-D 100 standard. They can be set up on a surface with the Multi-Pos or Single-Pos stand, or be fastened directly to the machine with the Multi-Pos holder or mounting frame.

Extensive extra functions

Execution of machining patterns
Probing functions for reference-point acquisition
Cutting-data calculator and spindle-speed control
Coupling of the axes in the top slide
Taper calculator and constant cutting speed

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de

Find your nearest representative

Downloads

Brochure: Digital Readouts

User Documentation

Application-oriented design

Information about the product

Click the plus signs to learn more about the product.

Sturdy for harsh shop environments

The POSITIP 8000 units feature an extremely robust aluminum enclosure with a very tough display made of specially hardened glass

Intuitive menu guidance

Self-explanatory icons and operating elements make menu navigation easy and enable context-sensitive operation

Various stands and holders

The Multi-Pos and Single-Pos stands are used for setting the POSITIP 8000 on a surface, and the Multi-Pos holder or the mounting frame are used to fasten it directly to the machine

Product variants

Find the right product for you: for further advice, please contact our Sales department by phone or e-mail, or through our online form.
